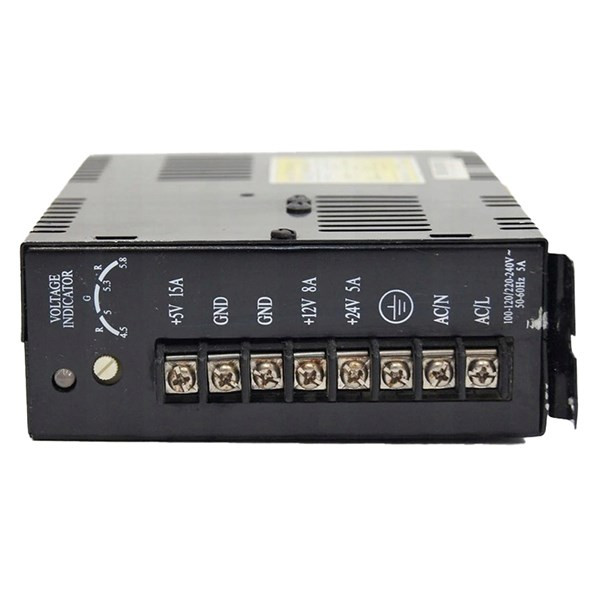

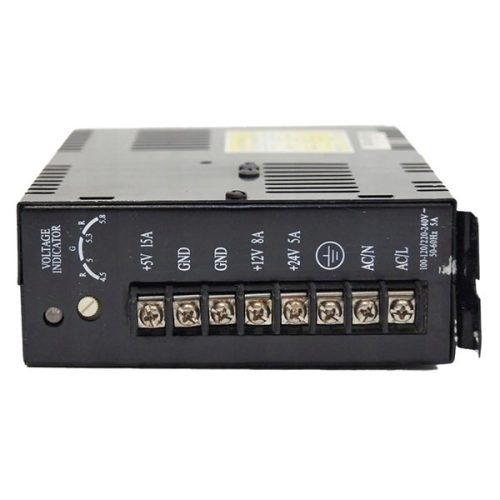

Tápegység WEI-YA WY-15CG2 5V:15A,12V:8A,24V:5A

Raktáron

29 550 Ft

Részletek
Adatok

Részletek

THREE-FOUR OUTPUTS WITH MAXIMUM POWER FROM 110 TO 200 WATT DEPENDING ON
THE MODEL
LOW COST, HIGH RELIABILITY.
HIGH EFFICIENCY.
OVER VOLTAGE PROTECTION.
OVER CURRENT PROTECTION.
LOW RIPPLE NOISE AT FULL LOADING.
LOW WORKING TEMPERATURE.
GREEN LED INDICATOR WHEN VOLTAGE WITHIN +5V~5.3V.
RED LED INDICATOR WHEN VOLTAGE WITHOUT +5V~5.3V.

Input Voltage 100~120 / 220~240 VAC
Input Frequency 47~63Hz
Input Current 2.4~5A / 1.2~2.8A
Inrush Current 40A
Efficiency 75%
Load Variation 2% MAX(+5V) 5% MAX (Other)
Noise And Ripple 25~50mV MAX(+5V) 150mV MAX(Other)
Operation Temperature 0~50?
Electronically Isolated Input~Output AC 3000V 1 Minute

Adatok

Gyártó:

WEI-YA
